3/4 HP Single Phase Electric Motor with 5/8″ Shaft

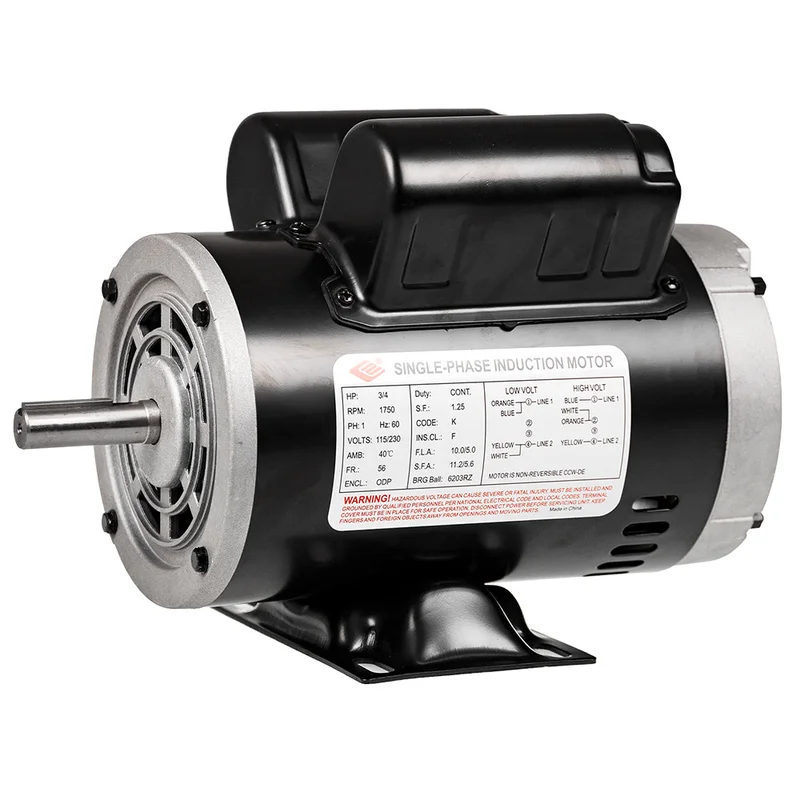

Brand new 3/4 HP 115/230-volt single phase electric motor. This motor features a 56 frame with a 5/8″ diameter shaft and rotates at 1750 RPM. This is a non-reversible motor that spins counter-clockwise (CCW) when you are facing the shaft. This is a high-quality motor designed to handle and withstand the startup load of a compressor pump but will also work with many other applications. A wiring diagram is listed on the side of the motor for reference during installation. Please see below for more features and specifications.
Specifications:
• Open Drip Proof Enclosure (ODP)
• Single Phase
• 3/4 HP
• 1750 RPM
• 60hz
• 115/230 Volts
• AMB 40 °C
• Frame: 56
• Duty: Cont.
• Service Factor: 1.25
• Full Load Amps: 10.0/5.0
• INS.CL: F
• Non-reversible, CCW Rotation Facing Shaft
• Overall Length W/O Shaft: 9-5/8″
• Overall Length With Shaft: 11-1/2″
• Overall Height: 8-1/2″
• Overall Width: 5-5/8″
• Shaft Diameter: 5/8″
• Shaft Length: 2″
• Standard Size Keyway: 3/16″
