Description

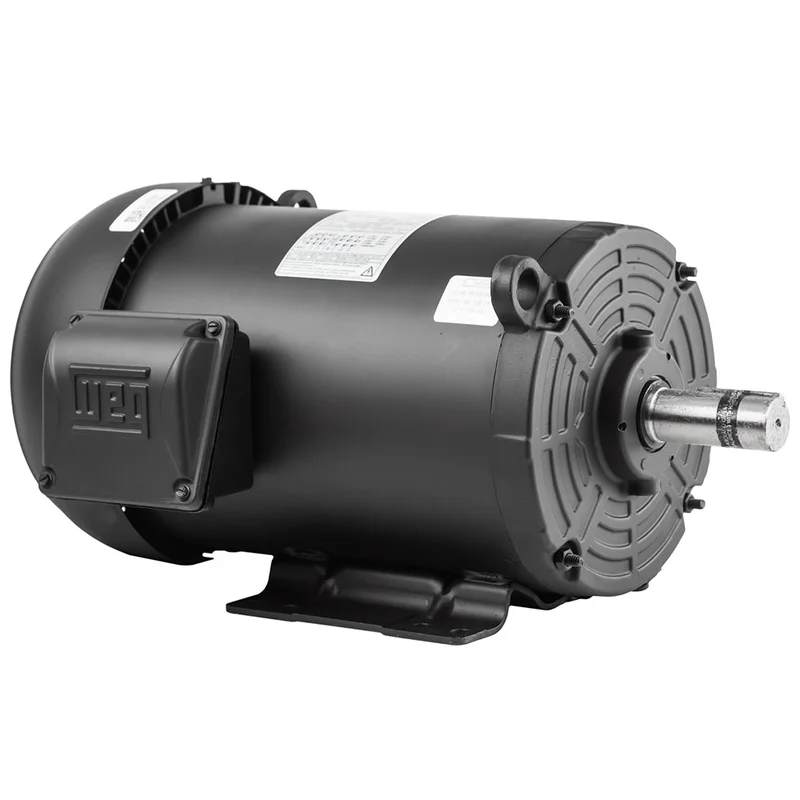

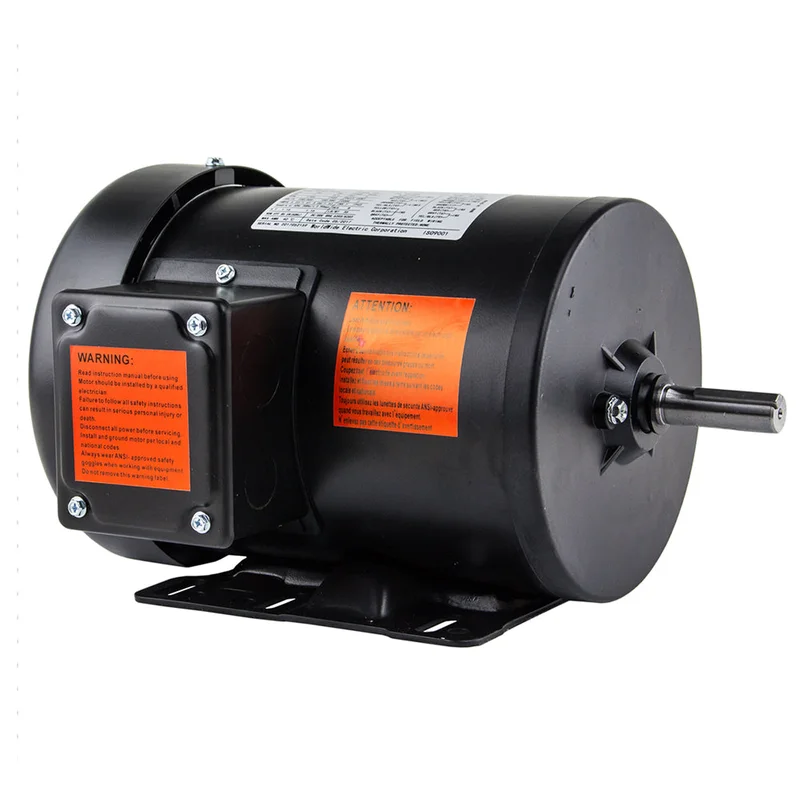

1 horsepower, three phase, premium efficiency electric motor, 230/460 volt with rigid base. Worldwide Electric designs and manufactures motors with quality and reliability in mind. This motor features Class F insulation, fan cooling, a 1.15 service factor, and a TEFC enclosure. Designed for 60Hz and is a 56H frame.
SPECIFICATIONS
• 1 Horsepower
• Three Phase
• TEFC Enclosure
• 56H Frame
• Service Factor 1.15
• Class F Insulation
• 230/460 Volts
• 1800 RPM
• Fan Cooled
• Worldwide Electric Brand
• Shaft Length: Approximately 1 7/8″
• Keyed 5/8″ Diameter Shaft
• Current: AC
• Full Load Amps: 3.22/1.61
• 60 HZ
• Shaft Material: 1045 Carbon Steel
• Max Temp: 40 Degrees C
• Weight Approx: 35 LBS
