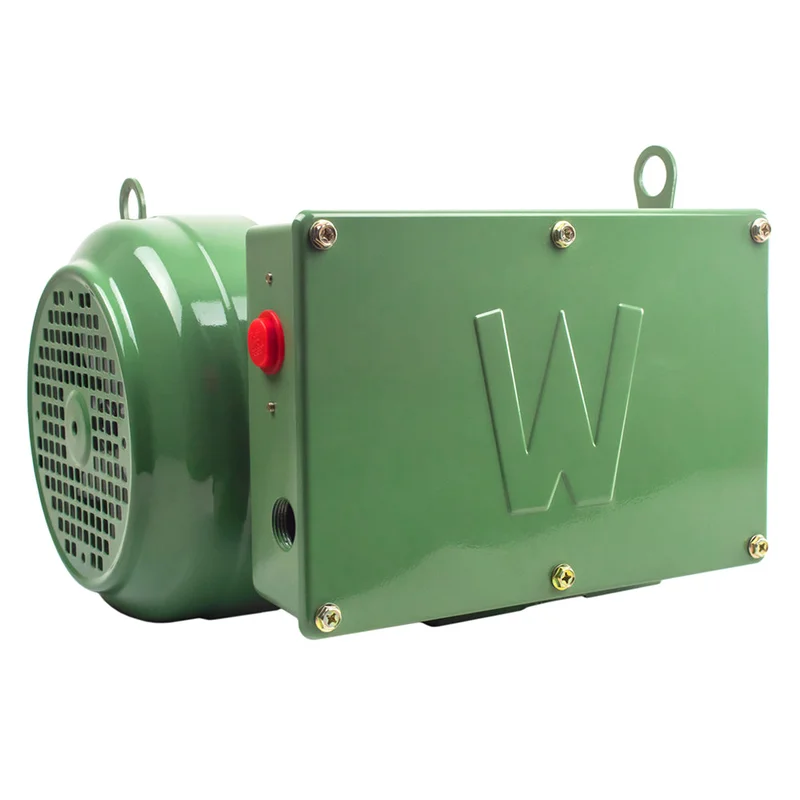

2 HP Single Phase Farm Duty Electric Motor TEFC
Brand new 2 HP 115/230-volt single-phase farm duty electric motor. This motor features a 56 frame with a 7/8″ diameter shaft and rotates at 1725 RPM. This is a reversible motor that spins either clockwise (CW) or counter-clockwise (CCW) when you are facing the shaft. This is a high-quality motor designed to handle and withstand the startup load of a compressor pump but will also work with many other applications. A wiring diagram is listed on the side of the motor for reference during installation. Please see below for more features and specifications.
Specifications:
• Totally Enclosed Fan Cooled (TEFC)
• Single Phase
• 2 HP
• 1725 RPM
• 60hz
• 115/230 Volts
• AMB 40 °C
• Frame: 56
• Duty: Cont.
• Service Factor: 1.15
• Full Load Amps: 20/10
• INS.CL: F
• Reversible
• Overall Length W/O Shaft: 12″
• Overall Length With Shaft: 14-1/2
• Overall Height: 8-3/4″
• Overall Width: 6-3/8″
• Shaft Diameter: 7/8″
• Shaft Length: 2-1/8″
• Standard Size Keyway: 3/16″
