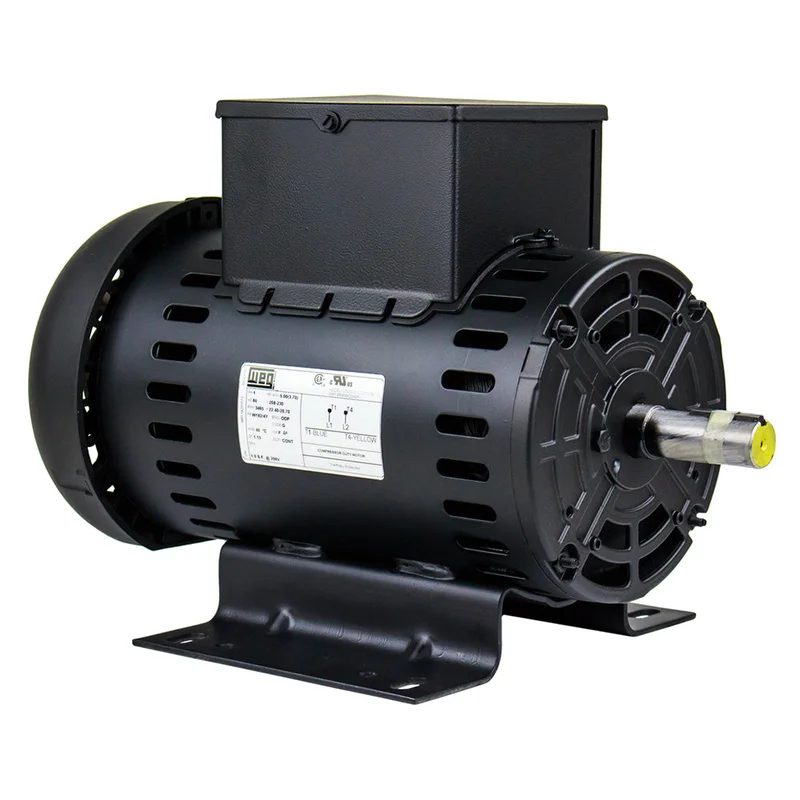

5 HP W182/4Y Single Phase 3465 RPM WEG Electric Motor
This listing is for a brand new WEG 5 horsepower air compressor motor model number 00536OS1CCDW184Y-S, this motor is 208-230 volt, 22.4-20.7 AMPS, 60 Hz, W182/4Y Frame (equivalent or close to an R56Y), single phase, 7/8″ diameter shaft, and 3465 RPM. This motor is specifically designed for use with air compressors to meet start up load / torque specifications. This can replace a higher rpm motor, you will just have to use a larger pulley to make up the RPMs on your compressor. If you have any questions about this motor or if it will work as a replacement on your compressor feel free to contact us.
Specifications
• Frame: W182/4Y
• Output: 5 HP
• Frequency: 60 Hz
• Rated Speed: 3465 RPM
• Rated Voltage: 208-230 Volts
• Rated Current: 22.4-20.7 Amps
• Insulation Class: F
• Service Factor: 1.15 (1.00 at 208V)
• Ambient Temperature: -20°C to +40°C
• Enclosure: ODP
• Rotation: CCW
• Approx. Weight: 53.15 lb
• Shaft Diameter: 7/8″
• Shaft Length: 2-1/4″
“THIS MOTOR ONLY SHIPS TO THE CONTINENTAL 48 UNITED STATES”
This motor has a 1 year limited manufacturer’s warranty
We strive for 100% customer satisfaction! We take the time to package these motors extremely well to make sure they get to you in perfect condition.
If you have any questions about this motor, feel free to reach out to us.
