Description
*Brand New Motor – Repackaged – Sold AS IS – No Manufacturer Warranty*

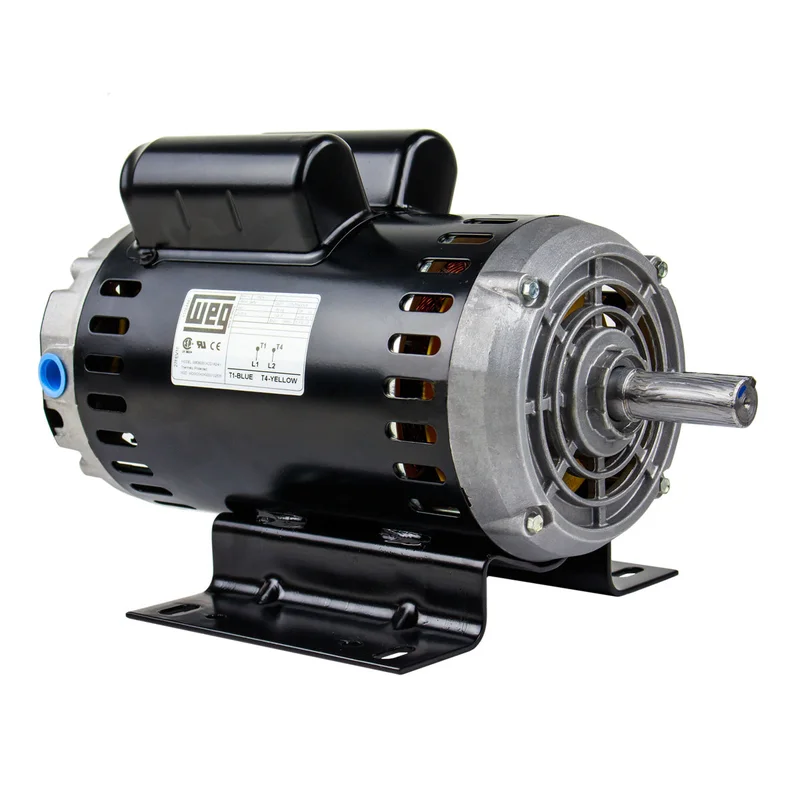

The WEG 00636OS1XCD182/4Y (WEG-11164442) is a 6.4-horsepower single-phase AC electric motor rated for 3450 RPM, operating at 240V, 60Hz, and an open (ODP) enclosure designed for use with air compressors, fans, blowers, pumps, chillers, and other belt-driven systems where exposure to moisture and dust is limited. The motor plate has mountings for both a 56 Frame or a 182/4Y frame, as long as your application requires a 7/8″ diameter shaft. Ball bearing designs and manual reset thermal protection are standard.
This motor is an exact replacement for a D26719 or Z-D26719 motor by DeVilbiss Power Products used in various DeVilbiss, Craftsman, and Black & Decker air compressors, among others. Other lookup numbers used to find this motor include S160-0338 and 160-0338.
Features & Specifications:
• Output: 6.4 HP
• Phase: 1 Phase
• Frame: Works For Either 56 Frame / 182/4Y
• Speed: 3450 RPM
• Shaft Rotation: CCW
• Rated Voltage: 240
• Frequency: 60 Hz
• Duty Rating: Continuous
• Insulation Class: F
• Enclosure: Open-Drip Proof (ODP)
• Shaft Diameter: 7/8″
• Amps: 23.00
• FL Efficiency: 85%
• Shipping Weight: 54 lbs
• Made In: Mexico or Brazil
• MAT/Spec.: 11164442
This item only ships to the 48 continental United States.
