Description

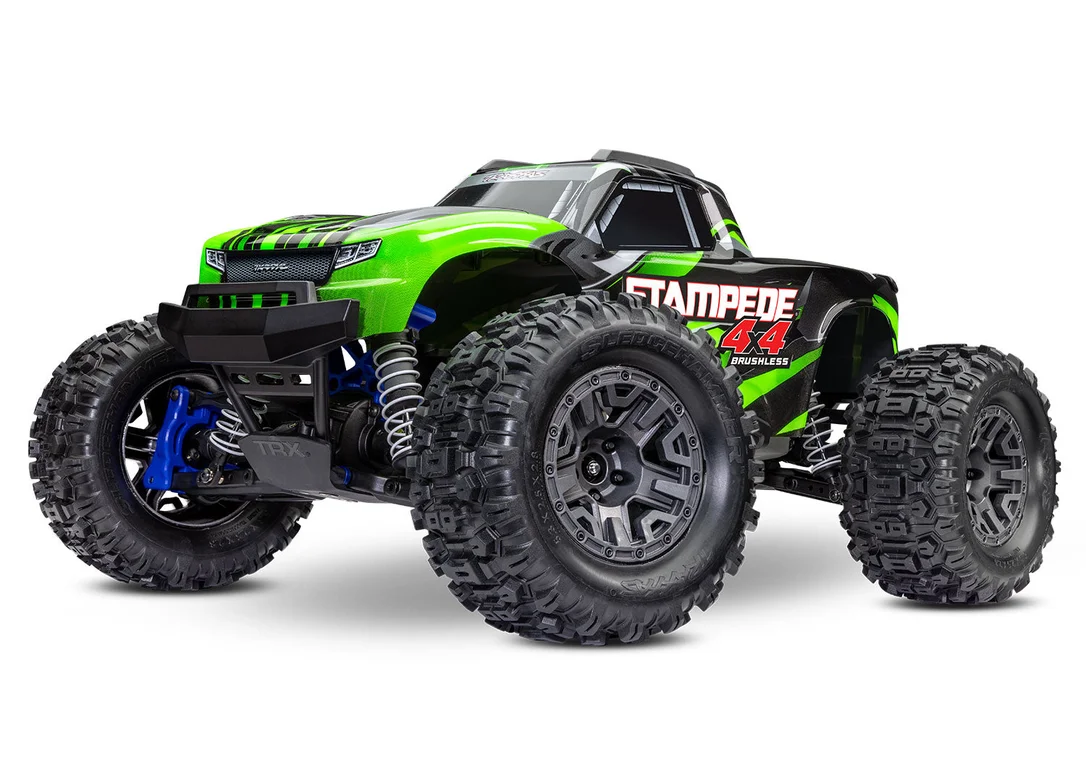

| Model Name: | Stampede 4X4 BL-2s |
|---|---|
| Model Type: | Monster Truck |
| Model Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 5.98 pounds (2.7 kg) |
| Length: | 17.87 inches (454 mm) |
| Width: | 13.10 inches (333 mm) |
| Front Track: | 13.10 inches (333 mm) |
| Rear Track: | 13.10 inches (333 mm) |
| Height: | 8.34 inches (212 mm) |
| Wheelbase: | 11.62 inches (295 mm) |
|---|---|
| Center Ground Clearance: | 2.44 inches (62 mm) |
| Drive System: | Shaft-driven 4WD |
| Drivetrain: | Shaft-driven 4WD |
| Differential Type: | Hardened steel bevel, sealed, limited slip |
| Gear Ratio (Internal): | 15.36:1 |
| Gear Pitch: | 32 pitch |
| Servo(s): | 2075 digital high-torque waterproof |
| Radio System: | 2.4 GHz 2-channel radio |
| Battery Compartment Specs: | 162 mm X 50 mm X 26 mm |
MOTOR SPECS
| Motor Name: | BL-2s 3300 kV |
|---|---|
| Motor Type: | Sensorless brushless |
| Motor Weight: | 7.51 ounces (213 g) |
| Motor Length: | 3.15 inches (80 mm) |
| Motor Diameter: | 1.42 inches (36 mm) |
| Motor Shaft Size: | 3 mm |
| Motor Connector Type: | Traxxas Quick Connect Motor Plug |
ESC SPECS
| ESC Name: | BL-2s Electronic Speed Control |
|---|---|
| ESC Type: | Brushless |
| ESC Case Size: | 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm) |
| ESC Weight: | 3.07 ounces (87 g) |
| Motor Connectors: | Traxxas Quick Connect Motor Plug |
| Battery Connectors: | Traxxas High-Current Connector |
