Description

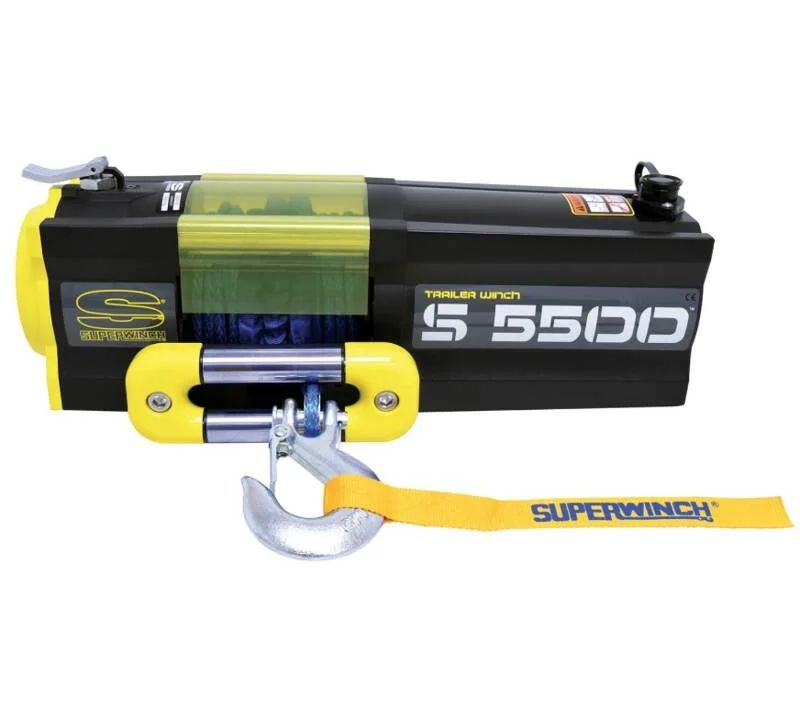

The S5500SR Winch continues Superwinch’s dominance as the leader in trailer-specific winching. The Superwinch S5500SR easily pulls loads up to 5,500 lbs, powered by a stout 3.6 HP permanent-magnet motor and an all-steel 3-stage planetary gearbox. The S5500SR includes a safety-tinted protective cover for operator safety, and to protect the cable and drum. The machined aluminum free-spool lever can also be easily operated by foot.
-
12V DC 5,500 lbs rated line pull
-
3.6 HP permanent magnet motor provides dynamic braking
-
3-Stage planetary gearing with 159:1 ratio
-
Sealed solenoid
-
Lever style freespool allows hand or foot operation
-
Steel cut gears for better engagement and longevity
-
1/4 in x 40 ft synthetic rope
-
Automatic load holding brake
-
Stainless steel 2-way roller fairlead
Specs:
-
Brake: Mechanical, Automatic
-
Fairlead: 2-way Roller/Hawse hybrid
-
Gear Ratio: 185:1
-
Gearing: 3-Stage Planetary
-
Height: 9″
-
Width: 13″
-
Length: 22″
-
Weight: 40 Lbs.
-
Hook: Heavy-Duty, Clevis Pinned Latched
-
Installed Weight: 92 lbs (42 kg)
-
Line Pull, 0 lbs: 80 Amps Motor Draw/19 FPM (5.8 MPM) Line Speed
-
Line Pull, 5,500 lbs: 410 Amps Motor Draw/2 FPM (0.6MPM) Line Speed
-
Motor: 3.6 HP Permanent Magnet
-
Rated Line Pull: 5,500 lbs (2494.8 kg)
-
Remote: 30.5 handheld
-
Rope: Synthetic 3/8in x 90ft (9.5mm x 27.43m)
-
Solenoid: Sealed S3 Solenoid
-
Warranty: 2 Year Limited
