Description

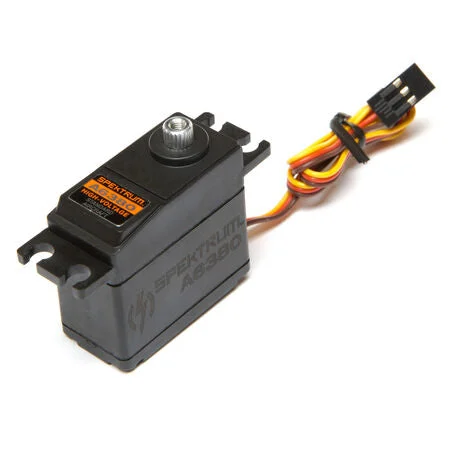

The Spektrum™ A6380 high-voltage, digital servo is the perfect budget-solution for your sport plane. With its durable design combined with dual bearing output support, metal-gear durability, smooth coreless motor operation, an impressive 160 oz-in torque rating at 8.4 volts, the A6380 servo boast specifications that easily beat other standard-size competitors in its class.
Specifications
- Application
- Airplane
- Bearing
- Dual
- Bushing Or Bearing
- Bearing
- Connector Type
- Universal
- Connector Wire Length
- 11.8″ (300 mm)
- Deadband
- 5µs
- Gear Type
- Metal
- Input Voltage
- 6.0V to 8.4V
- Maximum Servo Speed
- 0.17 sec/60 deg @ 6V; 0.13 sec/60 deg @ 8.4V
- Maximum Servo Torque
- 102 oz-in (7.3kg-cm) @ 6V; 160 oz-in (11.5kg-cm) @ 8.4V
- Product Application
- Air
- Product Height
- 1.47″ (37 mm)
- Product Length
- 1.52″ (39 mm)
- Product Weight
- 1.5 oz (42.5 g)
- Product Width
- 0.74″ (19 mm)
- Programmable
- No
- Servo Operating Voltage
- 6.0 – 8.4V (HV)
- Servo Size Category
- Standard
- Servo Type
- Digital
- Spline Count
- 23 – Tooth
- Water-Resistant
- No
- Wire Gauge
- 24 AWG
