Description

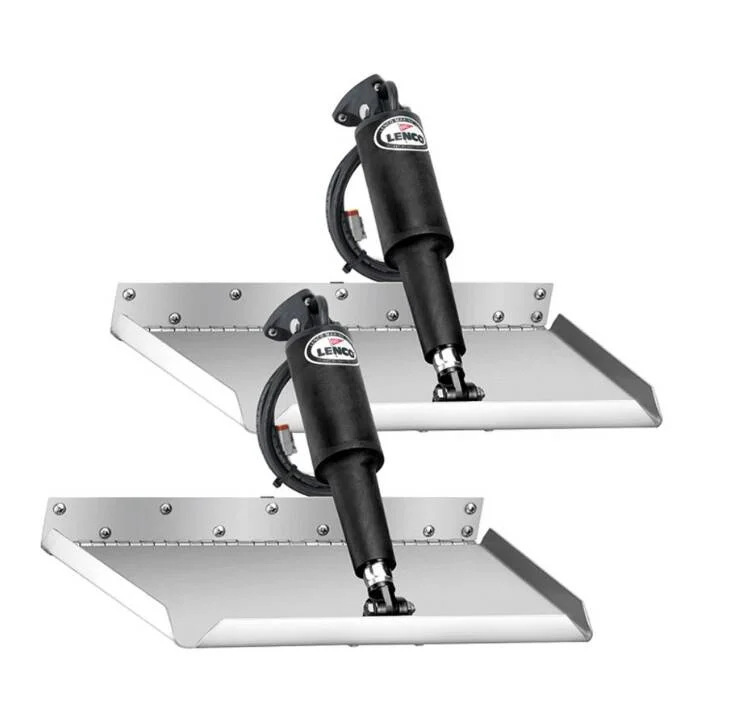

Designed for boat applications where a lower actuator mounting height is desirable. The actuator mounts at the trailing edge of the blade giving it a 13.5″ (34.29 cm) mounting height on 9″ (22.9 cm) long blades & 11″ (27.94 cm) mounting height on 12″ (30.5 cm) long blades. All edges are turned up for added strength and style. Boat lengths are from 14′ (4.3 m) to 36′ (11 m). Blades are constructed of 12-gauge (2.7 mm) laser cut 304 stainless steel with 1″ (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge, & 1/8″ (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with a mechanical cable gland seal.
- Instant response electric actuators for precise control
- Everything is fully submersible, maintenance-free and sealed for life
- Self-locking ballscrew will not drift, even while backing down
- 12-Gauge laser cut stainless steel trim tab planes
- High-impact corrosion-proof mounts look great through years of abuse
- Clean, time and space-saving installation
- Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case
- 316 super buff stainless steel rams
- System Type: Single Actuator
- Recommended boat length: 17′ – 30′
