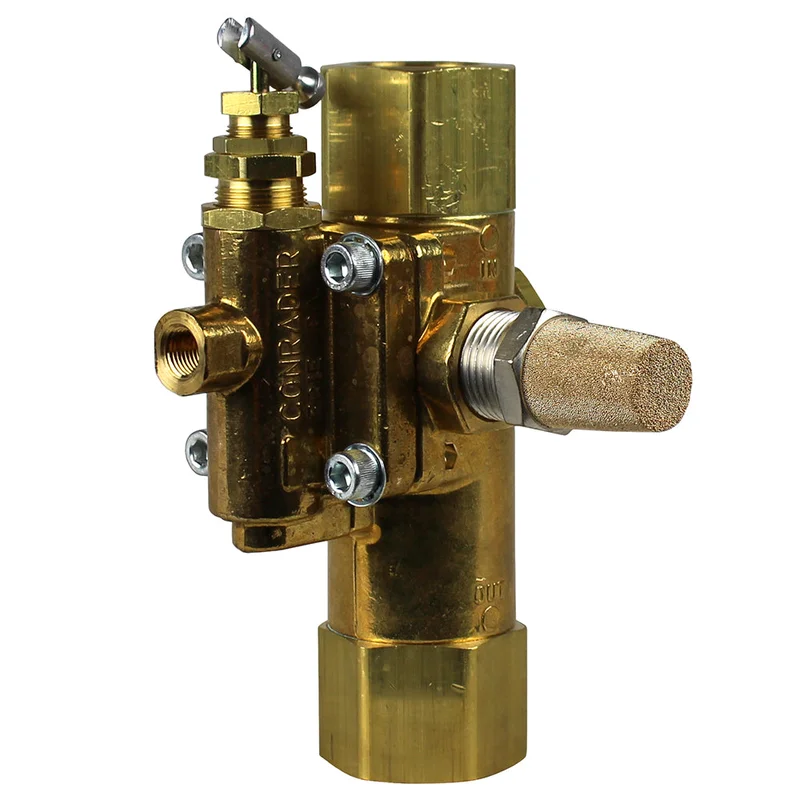

High Flow 3/4″ Female 145-175 PSI Pilot / Unloader Check Valve Combo 60 CFM for Gas Compressors

Description

This is a Conrader unloader, pilot valve, check valve combination. This valve comes factory set 145-175 PSI however, it can be adjusted +/- 30-40 PSI if needed. This valve has a 3/4″ Female NPT inlet and a 3/4″ Female NPT outlet port. Also included is the Conrader EM-50 Muffler on the exhaust port to help silence the outgoing air. This valve features a 1/8″ port for unloader or throttle control. If an unloader or throttle control is not required in your application, this port can simply be plugged.

Specifications:

• Item – Unloader Check Valve
• Type – 145-175 PSI Pressure Range
• Material – Brass
• Flow Range Free Air (CFM) – 60 or less
• Item – Pilot Unloader Check Valve
• Length (In.) – 5-1/2
• Material – Brass
• Max. Temp. (F) – 500
• Outlet (In.) – 3/4″ Female NPT
• Inlet – 3/4″ Female NPT
• Max. Pressure (PSI) – 250
• Spring Material – Stainless Steel
• Poppet – 15% Glass Filled
