Description

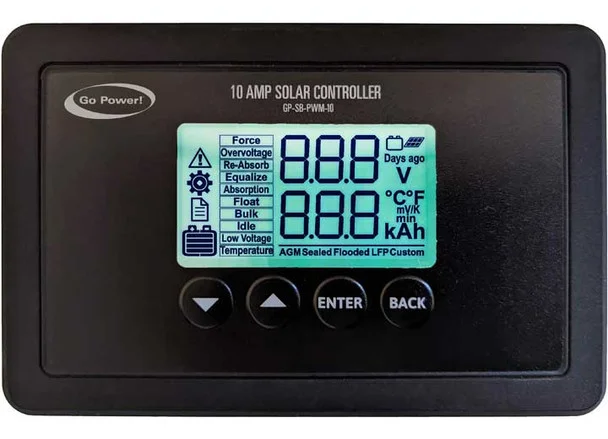

GP-SB-PWM-10: 10 AMP PWM DIGITAL SOLAR CONTROLLER
The GP-SB-PWM-10 is a 12 volt flush-mounted, single-bank, photo-voltaic (PV) charge controller rated for a continuous solar current input of 10 amps.
A solar controller is an essential component of your photovoltaic (PV) system. The controller maintains the life of the battery by protecting it from overcharging. When your battery has reached a 100% state of charge, the controller prevents overcharging by limiting the current flowing into the batteries from your solar array. The GP-SB-PWM-10 is a 12 volt flush-mounted, single-bank, photo-voltaic (PV) charge controller rated for a continuous solar current input of 10 amps.
FEATURES
-
Regulates current flow from your solar modules to your batteries
-
Temperature compensated pulse width modulation (PWM) charging
-
4 Battery charging profiles: Sealed/Gel, AGM, Flooded, LiFePO4 (lithium)
-
4 stage charging: Bulk, Absorption, Float and Equalize
-
Back lit LCD screen displays charging current, battery voltage and battery state of charge
-
Built-in USB charge port
-
Heavy-duty terminals for low resistance connections
-
Suitable for 12V solar systems up to 200 watts or 10 amps
-
5 year warranty
