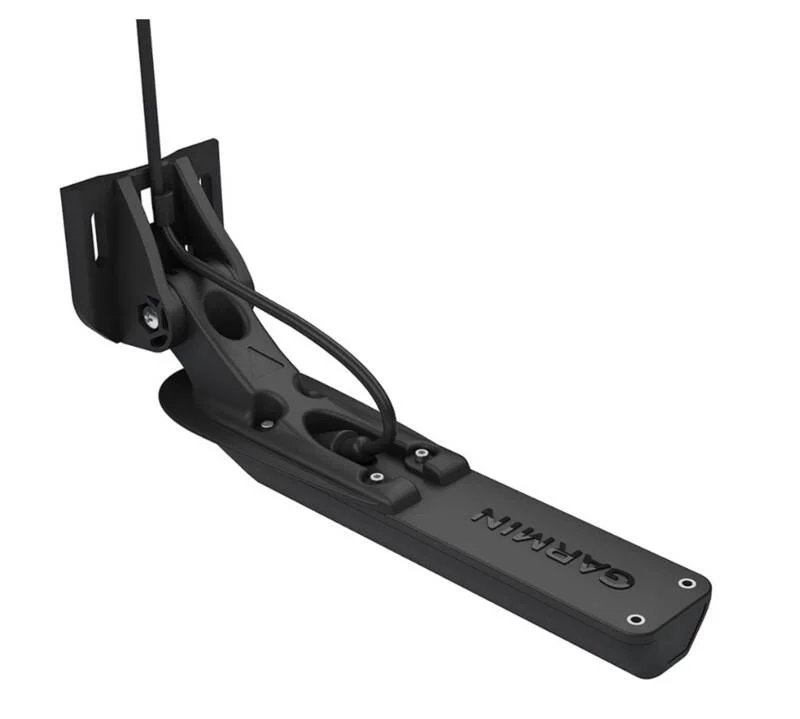

Garmin GT34UHD-TM 12-Pin Plastic Transom Mount Transducer with 20′ Cable • 010-12776-00

Description

GT34UHD-TM 12-Pin Plastic Transom Mount Transducer with 20′ Cable (010-12776-00) by Garmin®. Measures: Depth/Temperature. Frequency: 760-880kHz and 1.0-1.17 MHz. Max Power: 500W. Accommodates Deadrise: 0° – 70°. Add stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonar images to your compatible chartplotter via the GCV™ 20 sonar module. It includes 3 arrays, including a downward-facing element, with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz).

• Frequency: Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHzUltra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz

• Power: 500 W

• Beamwidth: Ultra High-Defintion ClearVü: 0.74° x 46°; Ultra High-Defintion SideVü: 0.44° x 55°

• Maximum depth: 200′ Ultra High-Definition ClearVü; 125′ to each side Ultra High-Definition SideVü, 250′ total, at a maximum depth of 30′

• Depth/Speed/Temperature: Depth and Temperature

• Number of pins: 12-pin

• Cable length: 20′

• Supported deadrise/Transom angles: 0°-70° degree transom

• Limited 2 Year Warranty

• Includes: Transducer and 20′ Cable
