Description

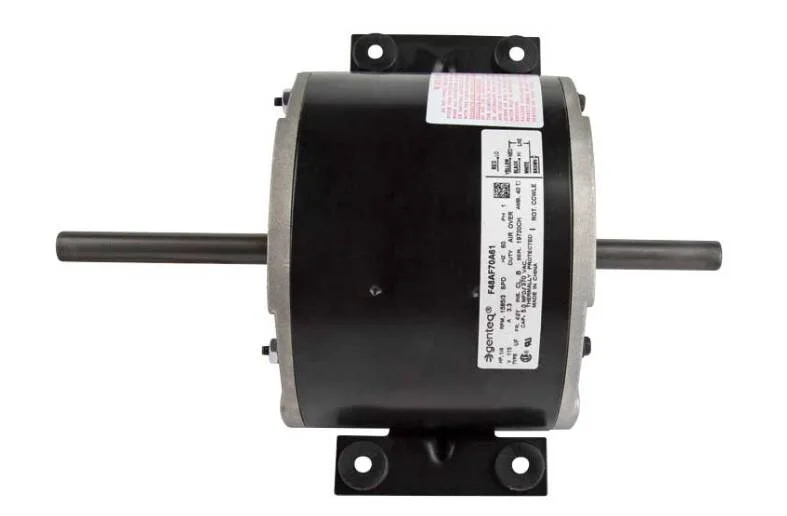

This Duo-Therm Fan Motor Assembly Kit for the Brisk II Air Conditioner is the OEM replacement part which powers the fan and blower wheel that moves air through the air conditioning system.
-
Mounting Style: Dometic Brisk Air II Series mounting brackets
-
Motor Type: Genteq F48AF70A61
-
Connection Style: Wiring to connect to a capacitor and a 6-pin plug
-
Power Source: 115V AC
-
Max Load Amps: 3.3 Amps
-
HP: 1/4
-
Motor Body Dim: 5-5/8″ Diameter x 4-3/8″ Thick
-
D-Shaft #1 Dim: 3-5/16″L x 1/2″ Diameter
-
D-Shaft #2 Dim: 2-7/16″L x 1/2″ Diameter
-
Wire Length: Approx 48″
Compatible with:
B57915.711C0, B57915.711J0, B59146.711C0, B59146.711J0, B59186.711C0, B59186.711J0, B59196.711C0, B59196.711J0, B59516.711C0, B59516.711J0, B59530.701C0 and B59530.701J0
Alternative Part #: 4450013348
