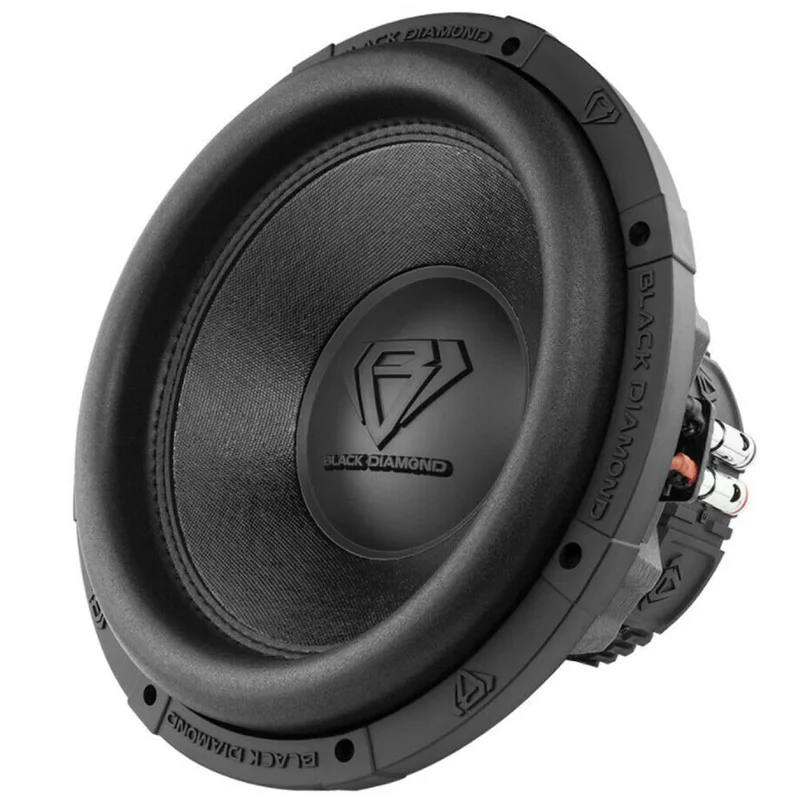

Diamond Elite DES Series 10 Inch 4 Ohm DVC 700 Watts RMS Power Subwoofer

Description

Diamond Audio 10″ Subwoofer Elite Series 4 Ohm DES104

Diamond Elite subwoofers deliver tremendous bass in a variety of enclosure designs making them an extremely versatile subwoofer. They sound dynamic and are precision crafted to withstand the demands exerted by long-extended listening sessions. Diamond Elite series utilizes a vented pole piece for cooler operation and klippel optimized motor and suspension symmetry which will be able to help you feel the max output of 800 watts max power wherever you go.

Features

• True fiber weave paper backed parabolic cone
• High grade rolled edged 4 legs black powder coat stamped frame
• Oversized black chrome push terminals
• Dual mirror image spider with woven tinsel leads
• Black PVC wrap around the mounting gasket
• Vented pole piece for cooler operation
• Klippel Optimized motor and suspension symmetry
• Nominal impedance: 4 Ohm

Thiele/Small Parameters

• SPL (dB):80.7
• Re (Ω) [series]:6.30
• Qms:9.0
• Qes:0.93
• Qts:0.84
• Fs (Hz):39.5
• Vas(L):11.0
• Cms (mm/N):0.07
• Mms (g):219
• Sd (m2):0.0325
• BL (T*M):19.2
• Xmax:15.7
• Power Handling (W) nom/max:400/800

Measurements

• Total Diameter: 10.55″
• Mounting Diameter: 9.17″
• Hole Diameter: 9.88″
• Mounting Depth: 5.97″
• Magnet Diameter: 6.51″
