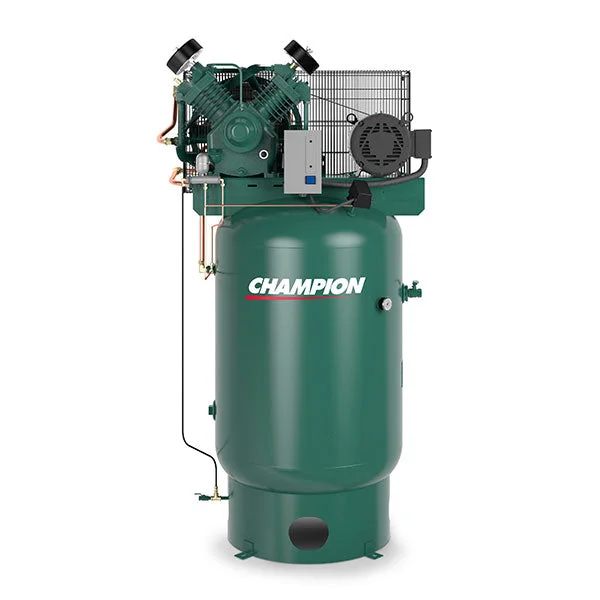

Champion VRV10-12 10 HP Two-Stage 120 Gallon Tank Air Compressor 36.6 CFM

Description

ChampionVRV10-12 10 HP
 Two-Stage 120 Gallon Air Compressor

With Champion, you not only get value, but you also get the confidence that comes with owning a solid, reliable compressor. The RV-Series exemplifies quality, reliability, long life, and tremendous value. Champion provides the total package—a low-cost solution with a broad range of options—saving money and providing peace of mind. This compressor features a 10 HP three-phase electric motor, a two-stage pump that delivers 36.6 CFM at 125 PSI, a 120-gallon tank, and comes equipped with a magnetic starter.

Standard Features:

• Automatic Start/Stop Operation
• Magnetic Starter*
• ASME Coded Receiver
• NEMA Rated Electric Motors
• 0–300 PSIG Air Pressure Gauge on Tank
• Preset Pressure Switch

Pump Specifications:

• CFM Delivered at 125 PSI: 36.6
• Pump RPM: 718
• Splash Lubricated Air Compressor Pump
• Two-Stage Design
• 100% Cast Iron Compressor Pump
• Alloy Steel Reed Valves
• Oil Level Sight Glass
• Oil Drain
• Deep Finned Intercooler
• Large, Cast Iron Flywheel
• Industrial Grade Intake Filter and Silencer
• All Pumps are Factory Tested

Motor and Tank:

• Motor HP: 10
• Three Phase
• 120-Gallon Tank
