Description

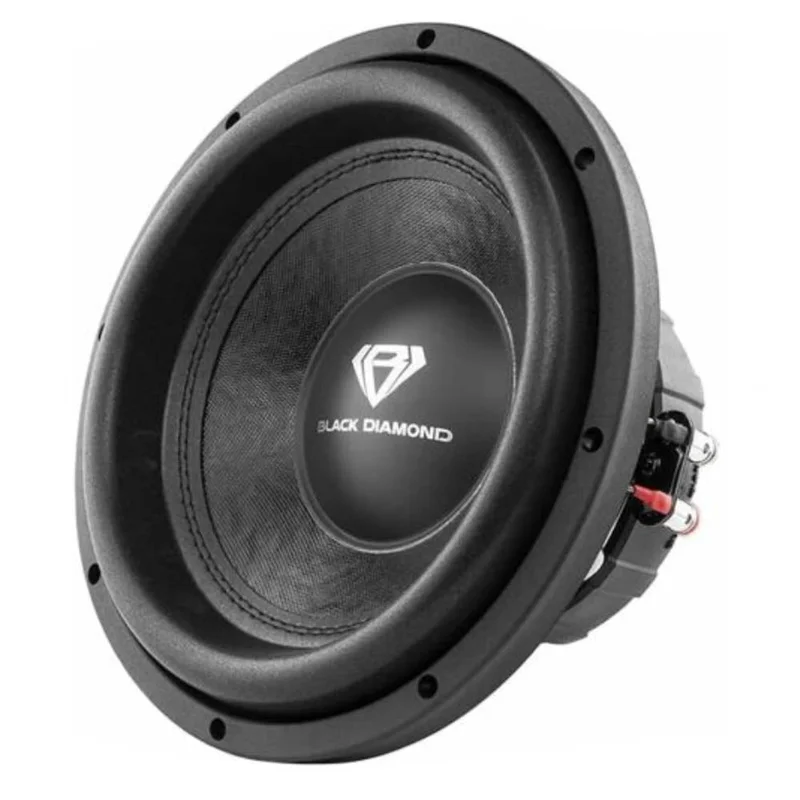

Black Diamond 15″ Subwoofer Dual 2 Ohm DIA-T15.2D
The DIA-T15.2D delivers impressive 2000W Max Power with 1000W RMS at Dual 4+4 Ohm. This 15″ Subwoofer puts out all of the power you need and handles low frequencies. Dual Voice Coil provides multiple options and flexibility to wire parallel, series, or independent. While typical subwoofers have a single voice coil, Black Diamond offers two. Feel quality sound with the best Ferrite magnets that produce a wider range of tones and can handle tremendous power at high volumes. This ultra-reliable subwoofer has dual voice coils and an aluminum basket all at an affordable price.
Features
• Nominal Diameter: 15″ (381mm)
• Nominal Impedance: 2+2 Ohm
• RMS Power Handling: 1000 Watts
• MAX Power Handling: 2000 Watts
• Sensitivity: (1w/1m) 85 dB
• Frequency Response: 15-200Hz
• Recommended Lo Pass Crossover: 80Hz
• Voice Coil Diameter: 3″ (76.5mm)
• Voice Coil Former Material: Aluminum
• Winding Material: Copper
• Cone Material: Non-Pressed Paper
• Dust Cap: PPI
• Surround Material: Foam
• Basket Material: Aluminum
• Basket Color: Finish Sandblasted Black
• Magnet Material: Ferrite
• Magnet Weight: 120 oz
• Displacement Volume: 3.39L / 0.12ft3
• Equivalent Volume: Vas 64L / 2.26ft3
• Excursion: Xmax 24mm
• Free Air Resonance: 30 Hz
• Mechanical Factor: Qms 3.741
• Electrical Factor: Qes 0.715
• Total Factor: Qts 0.6
• Moving Mass: Mms 371g
• Compliance: Cms 65µ M/N
• Bl Factor: BL 12
• Voice Coil Inductance: Le 0.51 mH
• Diaphragm Area: Sd 834.69 cm2
• Dc Resistance: Re 1.8+1.8 ohm
• Efficiency Bandwith: Product EBP 41.9
• Overall Diameter :Total 15.47″ (393mm)
• Overall Depth: Total 9.56″ (243mm)
• Front Mount Baffle Cutout: 13.74″ (349mm)
• Mounting Depth: / 8.13″ (206.6mm)
• Motor Diameter: / 7.08″ (180mm)
