Description

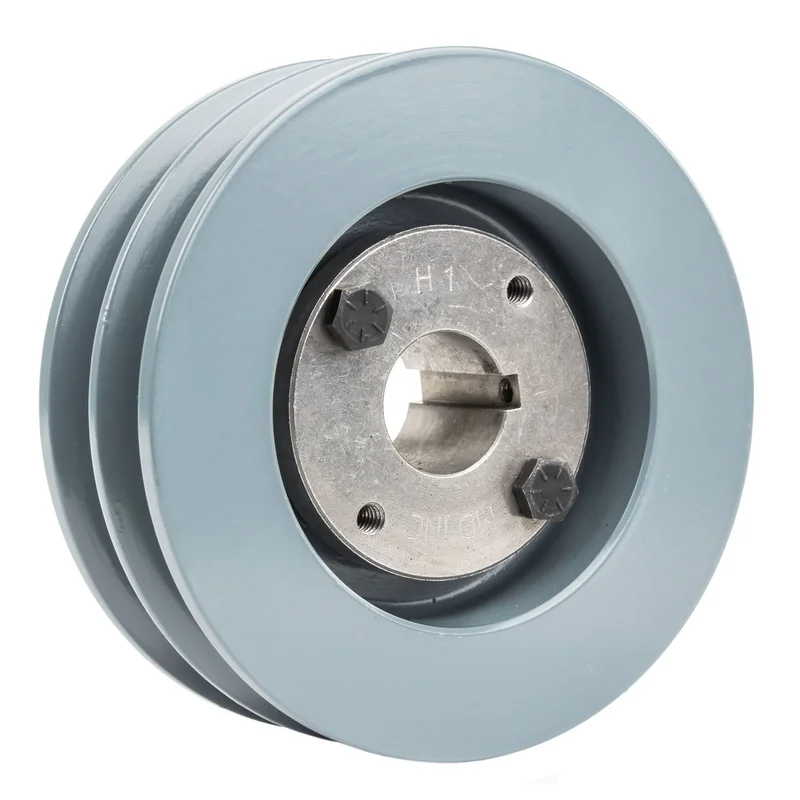

Cast Iron 4.75″ 2 Groove Dual Belt B Section 5L Pulley w/ 1″ Sheave Bushing
Masterdrive dual groove 4.75″ cast iron pulley/sheave with 1″ H bushing. This high-quality 2-piece pulley measures 4.75″ outside diameter and is designed to be used with an H style bushing. The 1″ bushing (included) inserts into the center of the pulley and slides over the shaft. As you tighten down the bolts on the H bushing it will tighten down on the shaft, making this style of pulley much more secure than a standard single-piece pulley. This listing includes an H bushing to fit on a 1″ shaft. The bushing itself is made of solid steel and is precision machined to ensure high quality and secure attachment to your motor/engine shaft. This pulley accepts B Section also known as 5L series belts. These belts are 5/8″ wide. This pulley will work with A Section belts Also known as 4L; however, they will sit farther down in the groove which will reduce your pulley size by 1/4″ to 1/2″ on average, depending on the size of the pulley.
Specifications:
• Dual Groove Pulley
• 1″ Bushing Included
• Accepts: B Section / 5L Section Belts
• High-Quality Cast Iron Construction
• Solid Steel Bushing
• For Use on 1″ Shaft
• Outside Diameter of Pulley: 4.75″
