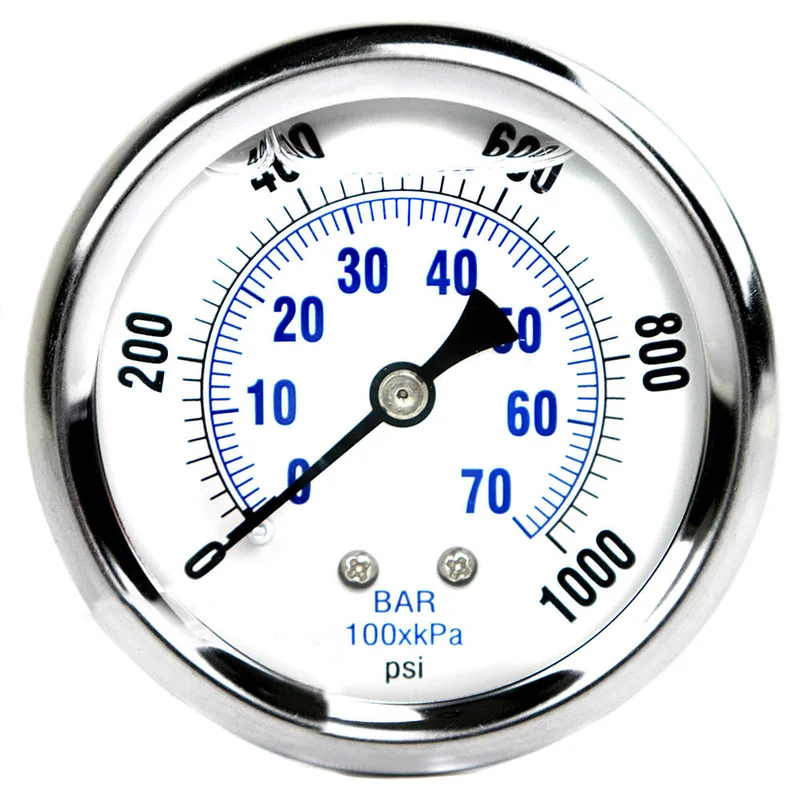

2.5″ Face Liquid Filled 0 – 1,000 PSI Pressure Gauge Center Back Mount

Description

One brand new, top quality, liquid filled air pressure gauge. This gauge has a glycerine filling that helps dampen the effects of pulsation and vibration, while also perpetually lubricating the  movement, and keeping contaminates such as dirt away from all moving parts, which will extend the life of the gauge.

This gauge reads at 0, 200, 400, 600, 800, and 1,000 PSIBar reading at 0, 10, 20, 30, 40, 50, 60, 70
Specifications:Dial size: 2.5″Connection size: 1/4″ male NPT which measures about 1/2″ in diameter.Center back mountStainless steel case and bezelBrass internals & connection (w/ built in snubber)Phosphor bronze bourdon tubeGlycerine filledAccuracy: 3-2-3% per ANSI grade BDual scale: PSI and bar (x100=kPa)Ambient temperature: 30 F to 160 F
