Description

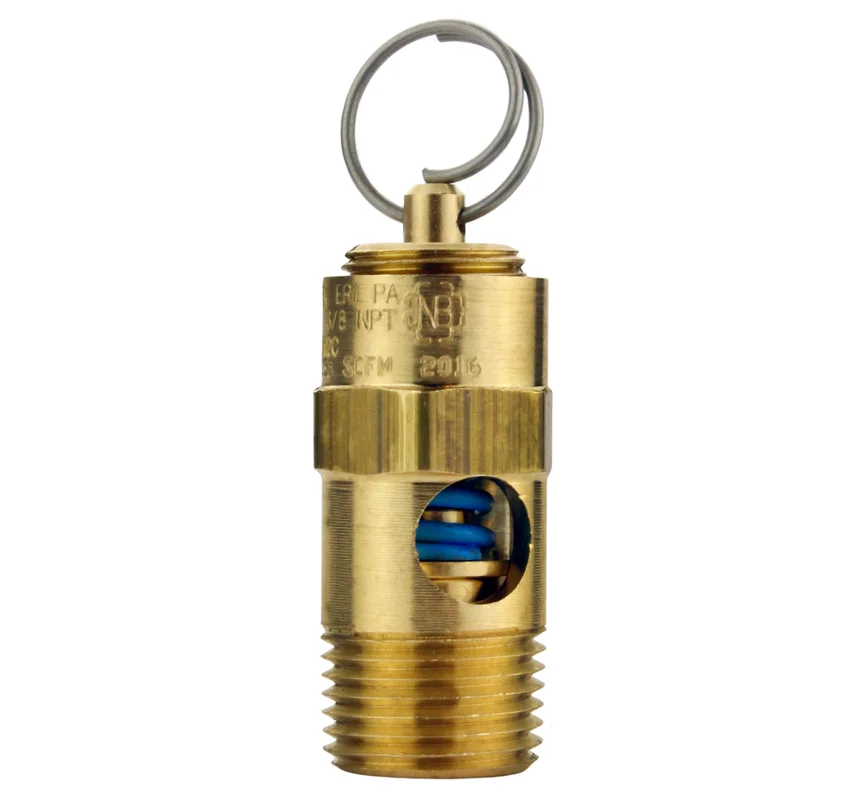

Brand new adjustable pressure relief valve. This relief valve is designed to be installed into the head of a small air compressor (less than 2HP), direct drive air compressor, or tankless air compressor, wherever a variable pressure relief valve is required. A Micrometer type scale allows for an easy and accurate adjustment to any pressure between 0 and 100 PSI. This valve has a solid brass body and internals. It also features a stainless steel poppet with a high-quality fluorocarbon o-ring. This valve is rated to operate in temperatures up to 250° F. The max air flow rating is 6 SCFM at 100 PSI.
Specifications:
Brand: Control Devices
Part Number: PC-25
Adjustable Pressure: 0 to 100 PSI
Max Temp: 250° F
1/4″ Male NPT Threads
Nylon Knob
Max Flow: 6 SCFM @ 100 PSI
Solid Brass Body & Internals
Stainless Steel Spring
Fluorocarbon O-Ring
